Handling technology for bulk materials - company division Sklenář s.r.o.
Disc and bucket conveyors are variable and can be adjusted to suit the customer´s requirements even after their delivery.
Disc conveyors ensure fast and reliable transfer of problematic dry bulk materials which are not susceptible to damage during transport.

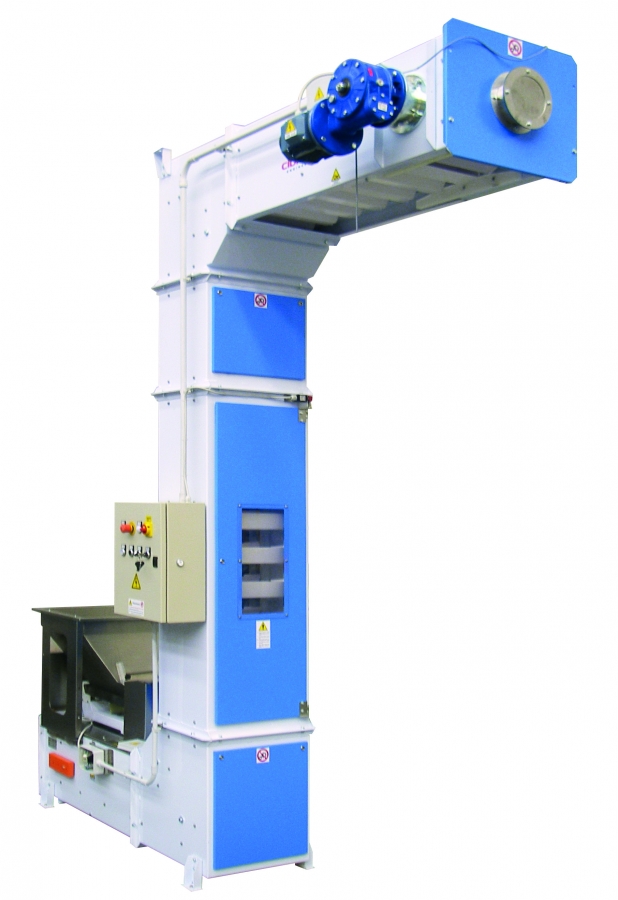

Bucket conveyors are the most suitable equipment for the reliable transfer of bulk materials and maintenance of their granulometry and homogeneity.
Bucket conveyors are designed so as to optimise the transfer of dry bulk materials of various fractions.
Bucket conveyors allow horizontal, vertical or inclined transport without the need to use transfer points. The material is conveyed without any fallout and contamination and the enclosed conveyor design prevents raising dust.
Thanks to their modular structure, bucket conveyors can also be used in confined spaces. Bucket conveyors are made to order so that even non-standard customers´ requirements can be met.
Buckets with material remain in a horizontal position throughout the transport process Buckets are made of stainless steel or PVC Minimal amount of material gets poured through Any desired number of inlets or outlets “Z”-shaped or …

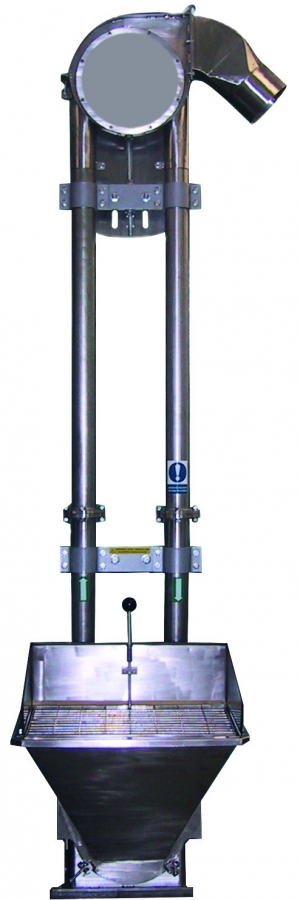

High-speed disc conveyors ensure reliable transport in working positions ranging from a horizontal up to an upright one. The basic moving part consists of a rope assembly with plastic discs mounted on the rope at regular intervals. The rope moves between two end wheels of a special design. The wheels are placed in stainless steel cases of the top and bottom stations which are interconnected with two pipes.
In comparison to chain or bucket conveyors, the rope with the discs moves at a higher speed. The discs are loosely aligned with the pipes and cases, and, given their high speed of movement, they move both the material and air. This way, even materials which would otherwise lack fluidisation properties become aerated (fluidised). EDL is therefore able to perform much better than other conveying systems of a similar size, weight or price category. Furthermore, in comparison to most other means of transport, there is considerably less damage to the conveyed material.
Fully-enclosed design ensures dust-free operation Vertical or inclined transport without the need to use transfer points A wide range of configurations for an ideal integration even in less accessible areas Additional re-design possible…
